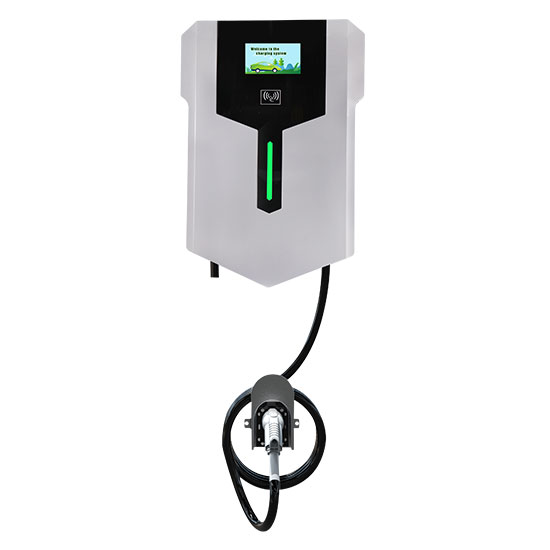

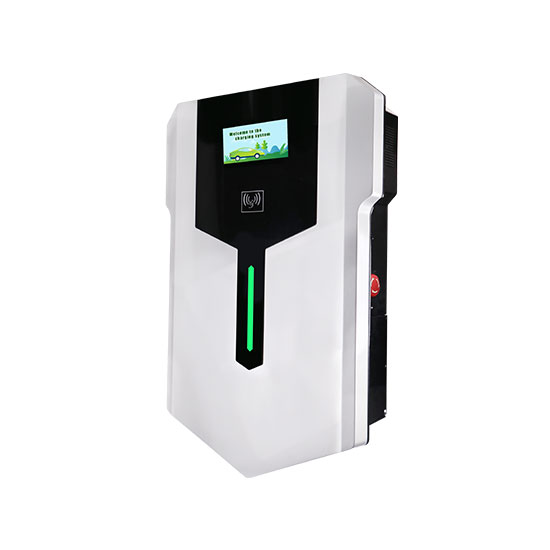

Wall-mounted DC charging piles are mainly used for DC fast charging of electric vehicles. It is a charging pile that integrates the functions of charging control and guidance, human-computer interaction control, communication, billing and metering.
It has good dust-proof and waterproof functions, and the protection level reaches IP54. It can work safely indoors and outdoors (with a rain-proof shed).
Power:
Application:
Household charging and Commercial charging.Instructions:
Start by swiping a card or entering password, which is convenient and quick, and can be operated by a mobile phone after networking.
| SPECIFICATIONS | ||
Power |
20KW |
|
Input voltage |
380-480VAC 50/60Hz |
|
Output voltage |
200-1000VDC |
|
Maximum input current |
80A |
|
Charging mode |
Household use: Offline swipe card to start, enter password to start |
|
Communication mode |
Ethernet, 4G |
|
Working temperature |
-20°C~55°C (-4°F~122°F) |
|
Relative humidity |
≤95% |
|
Protection leve |
IP54 |
|
Safety design |
Leakage Protection, Overvoltage Protection, Overcurrent Protection, Under voltage Protection, Emergency-stop Protection, Automatically stop charging when fully charged, Short circuit Protection, Over-temperature Protection |
|
Installation method |
Wall-mounted |
|
Interface number |
One (5 meters long line) |
|
Dimension |
29.92"X20.87"X8.33"（760X530X211.5mm) |
|
Working environment |
Outdoor (with rain shelter), Indoor |
|
Usage situation |
Household charging, Commercial charging |
|
